If you open App Store Connect and can't find the 6.9-inch screenshot slot, it's still there. It has a new name. Apple stopped labeling iPhone screenshot slots by screen size and now groups them by device feature: Dynamic Island, Face ID or Home Button. The pixel sizes did not change, but the slot you have to fill did. This page maps every old label to its new name, checked against Apple's screenshot specifications as of October 7, 2026.
The Short Answer #
- Required now: one set for iPhone with Dynamic Island (medium display), the old 6.3-inch slot. That is 1206 × 2622 or 1179 × 2556 pixels, the size of an iPhone 17, 17 Pro or 18 Pro.
- Required from April 2027: an iPhone Duo set as well, for every app submitted.
- Before this change: the required set was 6.9-inch (1320 × 2868), or 6.5-inch (1284 × 2778) if you skipped 6.9-inch.

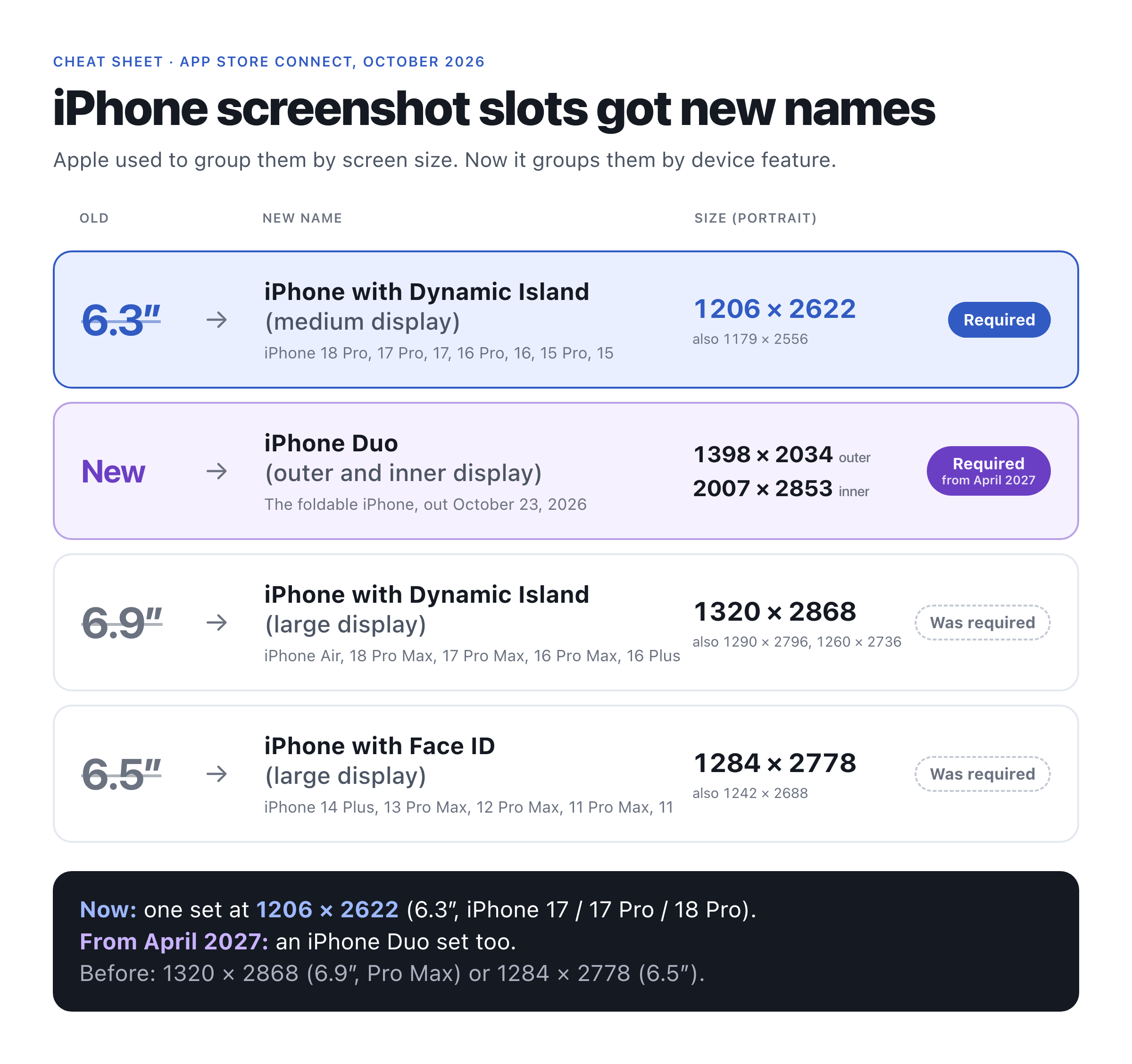

Old Label to New Name #
| Old label | New name in App Store Connect | Portrait size (pixels) | Required? |
|---|---|---|---|
| 6.3-inch | iPhone with Dynamic Island (medium display) | 1206 × 2622 or 1179 × 2556 | Yes |
| 6.9-inch | iPhone with Dynamic Island (large display) | 1320 × 2868, 1290 × 2796 or 1260 × 2736 | No, it was before |
| 6.5-inch | iPhone with Face ID (large display) | 1284 × 2778 or 1242 × 2688 | No, it was before |
| 6.1-inch | iPhone with Face ID (medium display) | 1170 × 2532, 1125 × 2436 or 1080 × 2340 | No |
| 5.5-inch | iPhone with Home Button (large display) | 1242 × 2208 | No |
| 4.7-inch | iPhone with Home Button (medium display) | 750 × 1334 | No |
| 4-inch | iPhone with Home Button (4" display) | 640 × 1136 or 640 × 1096 | No |
| 3.5-inch | iPhone with Home Button (3.5" display) | 640 × 960 or 640 × 920 | No |
| (new) | iPhone Duo | 1398 × 2034 outer, 2007 × 2853 inner | From April 2027 |
Landscape is the same numbers with width and height swapped. Each slot still takes 1 to 10 images in PNG or JPEG, with no transparency.
Which iPhone Is in Which Slot #
The new names make more sense once you see the phones in each group:
| New name | iPhones |
|---|---|
| Dynamic Island (medium display) | iPhone 18 Pro, 17 Pro, 17, 16 Pro, 16, 15 Pro, 15, 14 Pro |
| Dynamic Island (large display) | iPhone Air, 18 Pro Max, 17 Pro Max, 16 Pro Max, 16 Plus, 15 Pro Max, 15 Plus, 14 Pro Max |
| Face ID (large display) | iPhone 14 Plus, 13 Pro Max, 12 Pro Max, 11 Pro Max, 11, XS Max, XR |
| Face ID (medium display) | iPhone 17e, 16e, 14, 13 Pro, 13, 13 mini, 12 Pro, 12, 12 mini, 11 Pro, XS, X |
| Home Button (large display) | iPhone 8 Plus, 7 Plus, 6S Plus, 6 Plus |
| Home Button (medium display) | iPhone SE (2nd and 3rd generation), 8, 7, 6S, 6 |
The groups are the same as before. Only the labels changed.
iPad slots are not affected. They still use inches, and the 13-inch set is still the one you have to provide for an iPad app. Mac, Apple TV, Apple Vision Pro and Apple Watch are also unchanged.
The Required Slot Moved #
This is the part that matters more than the names. Until now, the required iPhone set was 6.9-inch. Apple's spec now says the one set you must provide is for iPhone with Dynamic Island (medium display), the old 6.3-inch slot. So the size to build is now 1206 × 2622, not 1320 × 2868.
The order App Store Connect fills empty slots in has changed too. The Face ID (medium) slot, the old 6.1-inch, now scales from the Dynamic Island (medium) set instead of from 6.5-inch. You don't have to manage this yourself. Leave a slot empty and App Store Connect fills it from the closest set you uploaded.
One thing to watch: Apple's page still has an older line under Face ID (large display) that says it is required when there is no Dynamic Island (large display) set. The top of the page and the medium display entry both say the medium slot is the required one, so build for that.
iPhone Duo: Required From April 2027 #
The iPhone Duo has its own slot, with sizes that don't match any other iPhone:
- Outer display: 1398 × 2034 pixels
- Inner display: 2007 × 2853 pixels
On October 5, 2026, Apple announced that starting April 2027, every app or game submitted needs iPhone Duo screenshots. That includes apps that were not changed for the Duo. Apple only says "April 2027" and does not give a day, so plan to have the set ready before April starts. The iPhone Duo screenshot sizes page has the details.
What to Do With Your Existing Screenshots #
If you already have a 6.9-inch set (1320 × 2868): it is still accepted. It now sits in the Dynamic Island (large display) slot. The required slot is the medium one, so add a 1206 × 2622 set the next time you submit.
If you are making a new set: build it at 1206 × 2622. Capture from the iPhone 17, 17 Pro or 18 Pro simulator and the size is already right. An iPhone 16 or 15 Pro capture is 1179 × 2556, which is also accepted in this slot.
If you upload raw captures: a Pro Max capture no longer covers the required slot. Before you upload, the free screenshot validator shows which slot a file fits.
Before April 2027: add an iPhone Duo set.
Frequently Asked Questions #
Where is the 6.9-inch slot in App Store Connect? It is now called iPhone with Dynamic Island (large display). The sizes are the same: 1320 × 2868, 1290 × 2796 or 1260 × 2736.
What is the required iPhone screenshot size now? 1206 × 2622 or 1179 × 2556 pixels, in the iPhone with Dynamic Island (medium display) slot. Landscape is 2622 × 1206 or 2556 × 1179.
Is 1320 × 2868 still accepted? Yes, in the Dynamic Island (large display) slot. It is no longer the required set.
Which simulator gives 1206 × 2622? The iPhone 17, iPhone 17 Pro or iPhone 18 Pro.
What is the new name for 6.5-inch? iPhone with Face ID (large display). It covers the iPhone 14 Plus, 13 Pro Max, 12 Pro Max, 11 Pro Max, 11, XS Max and XR.
When are iPhone Duo screenshots required? From April 2027, for every app or game submitted. The sizes are 1398 × 2034 for the outer display and 2007 × 2853 for the inner display.
Did the iPad screenshot sizes change? No. iPad slots still use inches, and 13-inch is still the required set.
Conclusion #
